Carton and Tray Erecting / Forming
Consistent and perfect carton erection is critical for the efficient operation of a top-load cartoning system. The Bradman Lake name is synonymous with high quality and high-efficiency carton and tray erection machines.
Various carton erectors / tray erectors can be selected to suit the customer’s application.
All machines cover a broad spectrum of operating speeds; they can be supplied with single, double, triple, and quadruple forming heads for maximum output rates, depending on carton size. Other configurations are also available.
Click here to watch Bradman Lake’s Carton Erectors videos on YouTube
Packaging Types
Models
The HS Carton Erector / Tray Erector model uses a ‘direct placement’ method of feeding the carton blanks into the forming tool. This method guarantees excellent performance and quick and easy setup using factory-set tooling.
The HS Erector / Former erects cartons and trays using a conventional four corner lock system or hot melt glue.
The HS can also be supplied as a Mini frame. The Bradman Lake HS “Mini” carton and tray former has been introduced to the market due to an ever-increasing demand for carton forming machinery that occupies minimal floor space. Its compact footprint is nearly half the size of traditional carton formers, yet it retains the same valuable features found in the Bradman Lake HS Erector / Former design platform.
The HSS Carton Erector / Tray Erector uses a reciprocating shuttle carton feed system.
The HSS Erector / Former erects cartons and trays using a conventional four corner lock system or hot melt glue.
The HSS can also be supplied as a Mini frame. The Bradman Lake HSS “Mini” carton and tray former has been introduced to the market due to an ever-increasing demand for carton forming machinery that occupies minimal floor space. Its compact footprint is nearly half the size of traditional carton formers, yet it retains the same valuable features found in the Bradman Lake HSS Former design platform.
Tooling Flexibility
Quick and easy to size change and ensure repeatability.

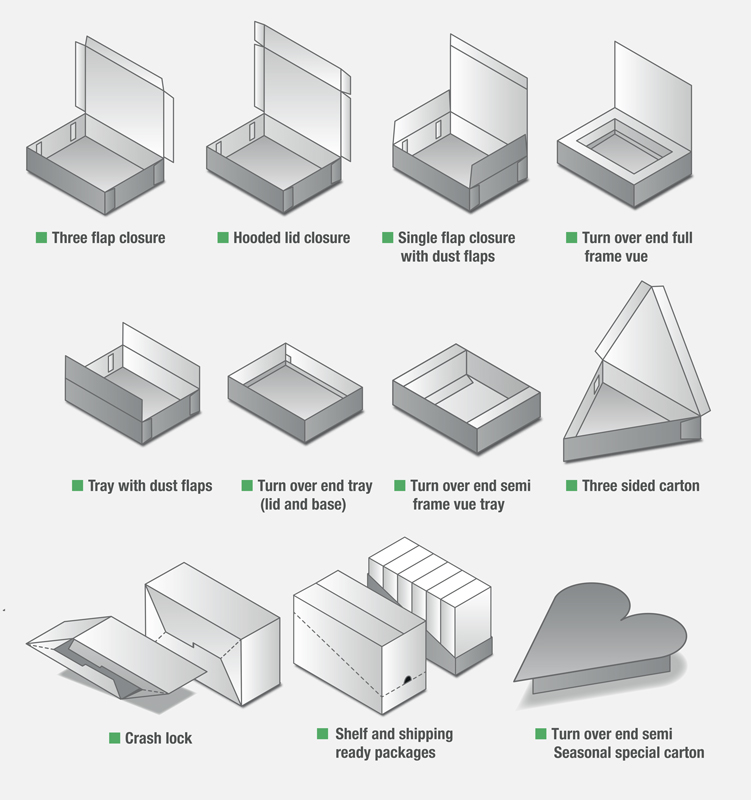

The Bradman Lake’s Carton and Tray Formers / Erectors can be tooled to erect different styles of lock and glue form cartons and trays, ranging from standard three flap or front flap cartons, turn-over-end cartons, to hooded lid cartons, as well as shelf-ready display style cartons that include atypical shapes associated with seasonal products.
Change part tooling is generally dedicated to a particular tray size, but for applications where many different cartons and tray sizes are required, an adjustable system can also be supplied to reduce the number of change parts required.
Tooling Cart
Bradman Lake Tooling cart is available for portable storage of Bradman Lake’s forming head change-parts. It is custom designed for each width of forming tool. The system addresses the common problem of lost or damaged forming tools or change parts.
Standard Features
- Holds two forming heads.
- Fits single, double or triple forming heads.
- Convenience for safe storage.
- Protection of critical tool settings.
- Portability between set ups.
- Versatility for all tool sizes.
- Quality construction stainless steel with castors.
- Economical price.
